Add an extra line of safety and become a better driver with this reversing camera and monitor system. You can mount your camera and monitor exactly where you need them. The small and durable camera installs easy and provides you with an extra set of eyes when reversing parking.

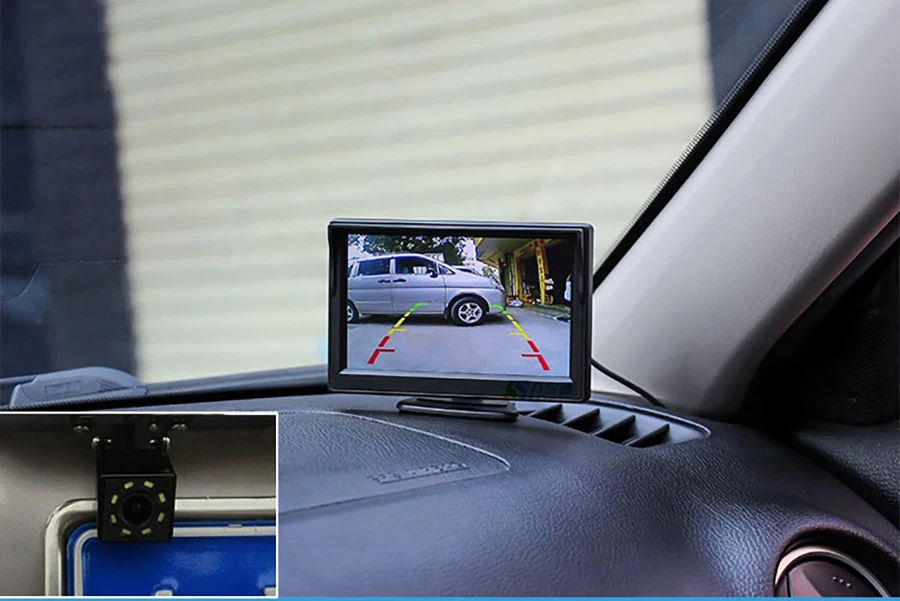

Steer clear of obstacle, watch out for pedestrians and skill your way into those tight parking spots like never before. The LCD display monitor and housing includes stand holder on the dashboard. It adds crisp color picture from your backup camera and reveals a picture display when you reverse or when visibility is limited.

The dashboard camera includes a swivel angle adjustable cam, RCA picture and video connector, as well as cables and wires for camera installation. Drive safer and smarter with the Reversing Camera and Monitor System.

Features:

  • WIDESCREEN MONITOR: The camera system come with 4.3 inches TFT/LCD mirror monitor display, 4:3 or 16:9 widescreen ratio. Video system is PAL/NTSC. Has an ability to connect to camera source with dual RCA jacks
  • DASHBOARD MOUNTABLE: With a stand holder which has adhesive sticker in the bottom for sticking it to your car dashboard firmly.
  • PARKING CAMERA: A rugged backup rear view camera with high resolution color reproduction. The parking camera system features a hi-res wide angle viewing angle at 170° with a swivel angle adjustable cam.
  • WEATHERPROOF CONSTRUCTION: This backup camera is IP68 Marine Grade waterproof rating can weather any rainy day conditions.
  • NIGHT VISION: This backup camera for car has built-in 8 high brightness IR LED lights for night vision illumination to detect low light settings and activate night vision view mode, allowing you to see better in the dark.

Specifications:

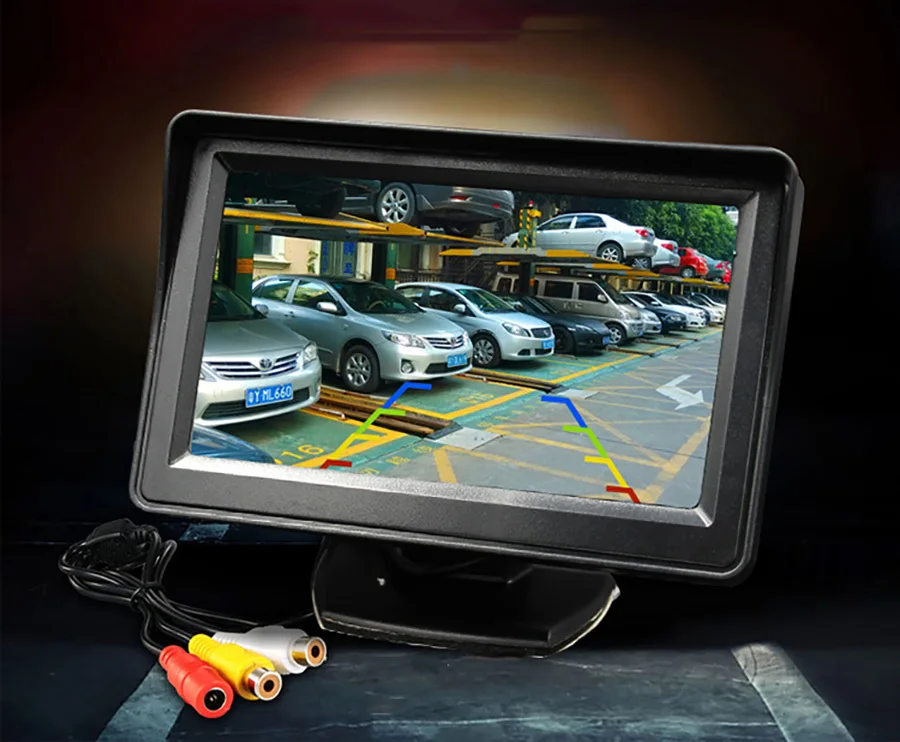

LED MONITOR:
– Screen Size: 4.3 inch(16:9),about 9.5cm(L) X 5.5cm(W)
– 2-channel video input: White video cable connects to car rear view camera, Yellow one to other video equipment.
– Rear view in priority.
– Display Resolution: 480 x 272 Pixel
– Display Rate: 4:3 / 16:9
– Video system: NTSC/PAL
– Power supply: DC 12V
– High resolution picture & Support full color LED backlight display.
– With rotatable screen & Display black screen on no signal.
– The OSD menu always in a readable position whatever the image is mirror or normal.

CAR REARVIEW CAMERA:
8 LED lights fill light with night vision HD camera
170 degree diagonal viewing angle micro lens with mirror image.
Lens Angle: 110degrees horizontal
High resolution color image sensor and PAL/ NTSC TV system.
waterproof, shockproof, dustproof (IP68 waterproof)
Resolution: 420TV lines
Size : 22mm x 22mm x 23mm
Min Illumination: 0.1Lux
Waterproof: IP68
Power Supply: DC 12V
Color: Black
Video Cable Length: 6m/ 19.3 ft

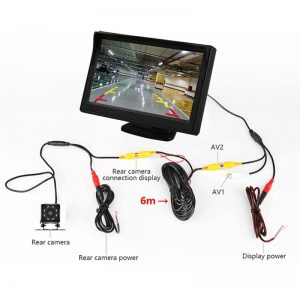

Easy to install:

– Mount the camera to your car’s license plate area or any other suitable place.
– Adjust the lens of the camera to its best position.
– Connect power wire(red and black) to your vehicle DC 12V power system.
– Connect the video output(yellow wire) of the camera to the display in your vehicle.

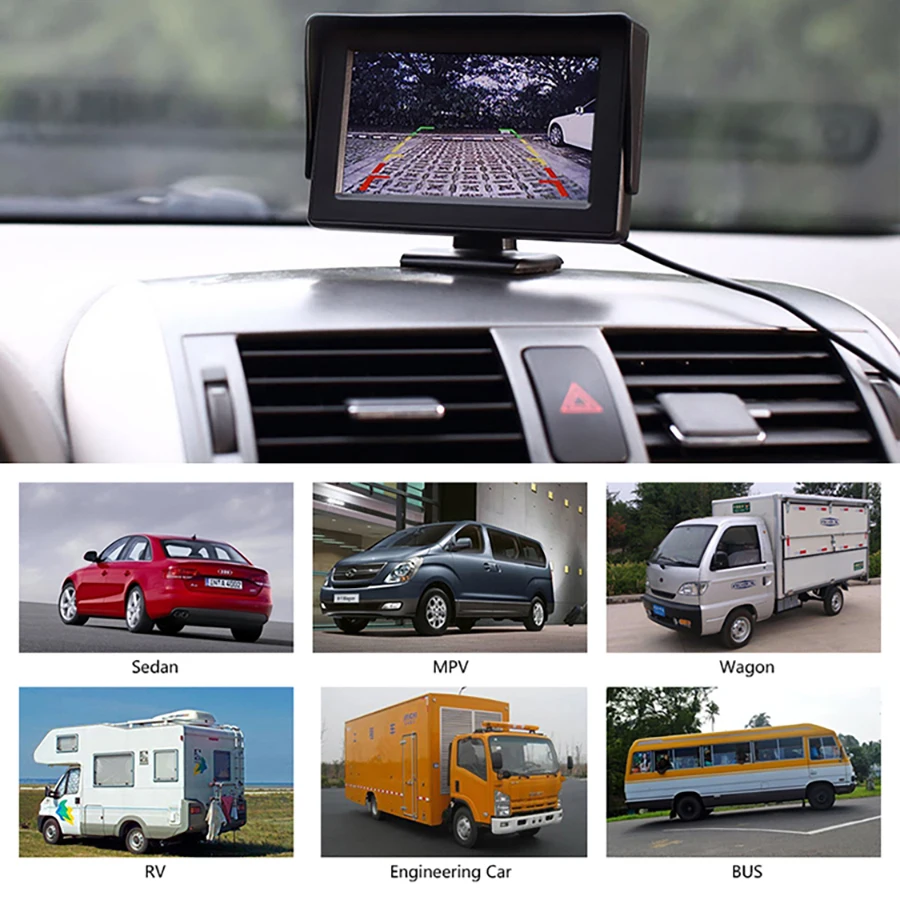

– The field of view about the ground , and it also fit for caravan.

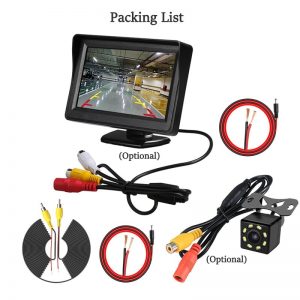

Package Includes:

1 x Camera
1 x Monitor
1 x User Manual
2 x Video & Power Cable
